Sequences of Touching Circles

Many a Sangaku come in groups of related problems of which the ones below serve an example. All are easily resolved on the basis of another one from Miyagai prefecture. (So I just give a location and a date. The notations are reasonably obvious.)

• Tokyo prefecture, 1789.

  Answer: r_n = ((n - 2)/√r₁ + 1/√r₂)^-2, n > 2.

• Osaka prefecture, 1801.

  Answer: r₁ = a·(3 - 2√2). r_n = a / (√2 + n)², n > 1.

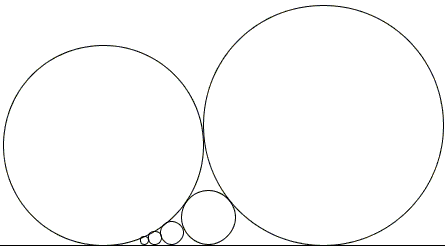

• Mie prefecture, 1844.

  Answer: r₁ = a/4. r_n = a / (n + 1)², n > 1.

References

1. H. Fukagawa, D. Pedoe, Japanese Temple Geometry Problems, The Charles Babbage Research Center, Winnipeg, 1989

   Write to:

   Charles Babbage Research Center
   P.O. Box 272, St. Norbert Postal Station
   Winnipeg, MB
   Canada R3V 1L6
